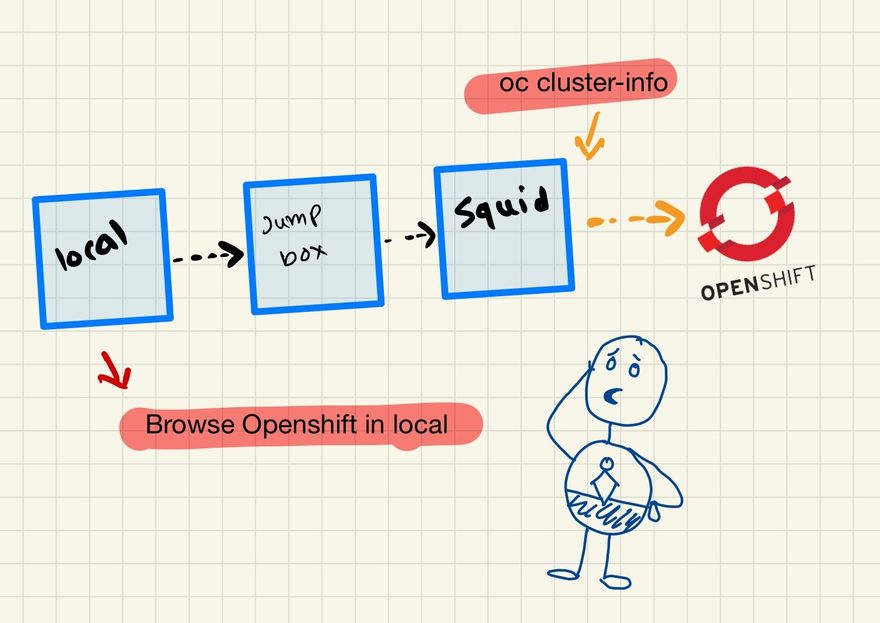

Cover image for How to Configure a Squid Proxy and SSH Tunnel on RHEL 8 to access OpenShift Console from your local machine
Balkrishna Pandey
Balkrishna Pandey

Posted on

How to Configure a Squid Proxy and SSH Tunnel on RHEL 8 to access OpenShift Console from your local machine

Squid is a widely used open-source proxy server that provides caching and forwarding of HTTP, HTTPS, and FTP web requests between clients and servers. In today's digital world, where data privacy and security are paramount, a Squid proxy can be an essential tool in ensuring the safety of your network. In this article, we will discuss how to install and configure Squid proxy on RHEL 8, set up an SSH tunnel to connect to the proxy server, and configure the browser settings to access the OpenShift web console using Squid.

ssh tunnel

Section 1: Install and Configure Squid Proxy

The first step is to install Squid on your RHEL 8 server. To install Squid, run the following command in your terminal:

sudo dnf install squid
Enter fullscreen mode Exit fullscreen mode

Once the installation is complete, we need to configure Squid. The configuration file for Squid is located in /etc/squid/squid.conf. Open the configuration file using your preferred text editor.

To change the port on which Squid listens for incoming requests, modify the http_port directive. By default, Squid listens on port 3128. Change the port to 2138 by replacing the existing line with the following:

http_port 2138
Enter fullscreen mode Exit fullscreen mode

Save the file and exit the editor.

Next, we can start, stop, or restart Squid using the following commands:

sudo systemctl start squid
sudo systemctl stop squid
sudo systemctl restart squid
Enter fullscreen mode Exit fullscreen mode

We can use the acl and http_access directives to block access to a specific website. For example, to block access to example.com, add the following lines to the configuration file:

acl blocked_sites dstdomain .example.com
http_access deny blocked_sites
Enter fullscreen mode Exit fullscreen mode

Save the file and restart Squid to apply the changes.

Section 2: Set up an SSH Tunnel to Connect to the Proxy Server

We can set up an SSH tunnel to securely connect to the Squid proxy server. An SSH tunnel is a secure encrypted connection between a local machine and a remote server.

We need to create an SSH configuration file on our local machine. The SSH configuration file is located in ~/.ssh/config. Open the file using your preferred text editor.

Add the following lines to the configuration file:

Host jumphost
    Hostname jumphost.example.com
    User username
    IdentityFile ~/.ssh/id_rsa
    ForwardAgent yes

Host squidproxy
    Hostname squidproxy.example.com
    User username
    IdentityFile ~/.ssh/id_rsa
    ProxyCommand ssh -W %h:%p jumphost
    LocalForward 2138 localhost:2138
Enter fullscreen mode Exit fullscreen mode

Replace jumphost.example.com with the hostname or IP address of your jumphost and username with your username.
Save the file and exit the editor.
To connect to the Squid proxy server, run the following command in your terminal:

ssh squidproxy
Enter fullscreen mode Exit fullscreen mode

This will create an SSH tunnel between your local machine and the Squid proxy server.

Section 3: Configure Browser Settings to Access OpenShift Web Console

To access the OpenShift web console using Squid, we need to configure the browser settings to use the Squid proxy server.

Open your browser and go to the settings. Under the network settings, find the proxy settings, and select "Manual Proxy Configuration." Enter localhost and 2138 as the proxy server and port, respectively.

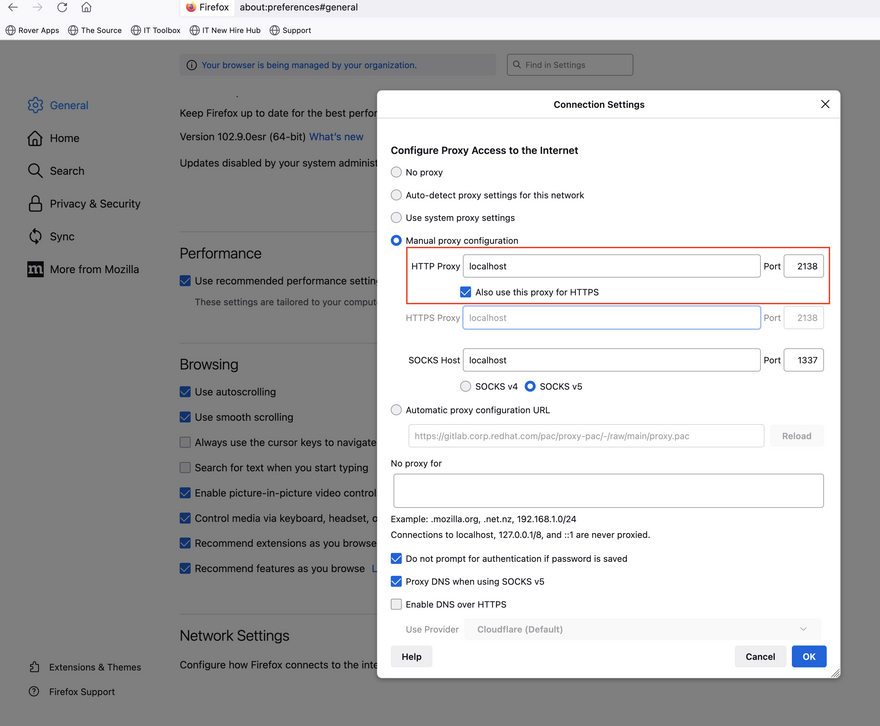

Browser Proxy Settings

Additionally, we need to add entries in the /etc/hosts file to map the hostname of the OpenShift web console to the IP address of the keepalived as follows,

192.168.7.144  api.hubztp.telco.ocp.run
192.168.7.145  oauth-openshift.apps.hubztp.telco.ocp.run
192.168.7.145  console-openshift-console.apps.hubztp.telco.ocp.run
192.168.7.145  downloads-openshift-console.apps.hubztp.telco.ocp.run
192.168.7.145  canary-openshift-ingress-canary.apps.hubztp.telco.ocp.run
192.168.7.145  alertmanager-main-openshift-monitoring.apps.hubztp.telco.ocp.run
192.168.7.145  prometheus-k8s-openshift-monitoring.apps.hubztp.telco.ocp.run
192.168.7.145  prometheus-k8s-federate-openshift-monitoring.apps.hubztp.telco.ocp.run
192.168.7.145  thanos-querier-openshift-monitoring.apps.hubztp.telco.ocp.run
Enter fullscreen mode Exit fullscreen mode
