Blog: Alpha in v1.22: Windows HostProcess Containers

Authors: Brandon Smith (Microsoft)

Kubernetes v1.22 introduced a new alpha feature for clusters that include Windows nodes: HostProcess containers.

HostProcess containers aim to extend the Windows container model to enable a wider range of Kubernetes cluster management scenarios. HostProcess containers run directly on the host and maintain behavior and access similar to that of a regular process. With HostProcess containers, users can package and distribute management operations and functionalities that require host access while retaining versioning and deployment methods provided by containers. This allows Windows containers to be used for a variety of device plugin, storage, and networking management scenarios in Kubernetes. With this comes the enablement of host network modeβ€”allowing HostProcess containers to be created within the host's network namespace instead of their own. HostProcess containers can also be built on top of existing Windows server 2019 (or later) base images, managed through the Windows container runtime, and run as any user that is available on or in the domain of the host machine.

Linux privileged containers are currently used for a variety of key scenarios in Kubernetes, including kube-proxy (via kubeadm), storage, and networking scenarios. Support for these scenarios in Windows previously required workarounds via proxies or other implementations. Using HostProcess containers, cluster operators no longer need to log onto and individually configure each Windows node for administrative tasks and management of Windows services. Operators can now utilize the container model to deploy management logic to as many clusters as needed with ease.

How does it work?

Windows HostProcess containers are implemented with Windows Job Objects, a break from the previous container model using server silos. Job objects are components of the Windows OS which offer the ability to manage a group of processes as a group (a.k.a. jobs) and assign resource constraints to the group as a whole. Job objects are specific to the Windows OS and are not associated with the Kubernetes Job API. They have no process or file system isolation, enabling the privileged payload to view and edit the host file system with the correct permissions, among other host resources. The init process, and any processes it launches or that are explicitly launched by the user, are all assigned to the job object of that container. When the init process exits or is signaled to exit, all the processes in the job will be signaled to exit, the job handle will be closed and the storage will be unmounted.

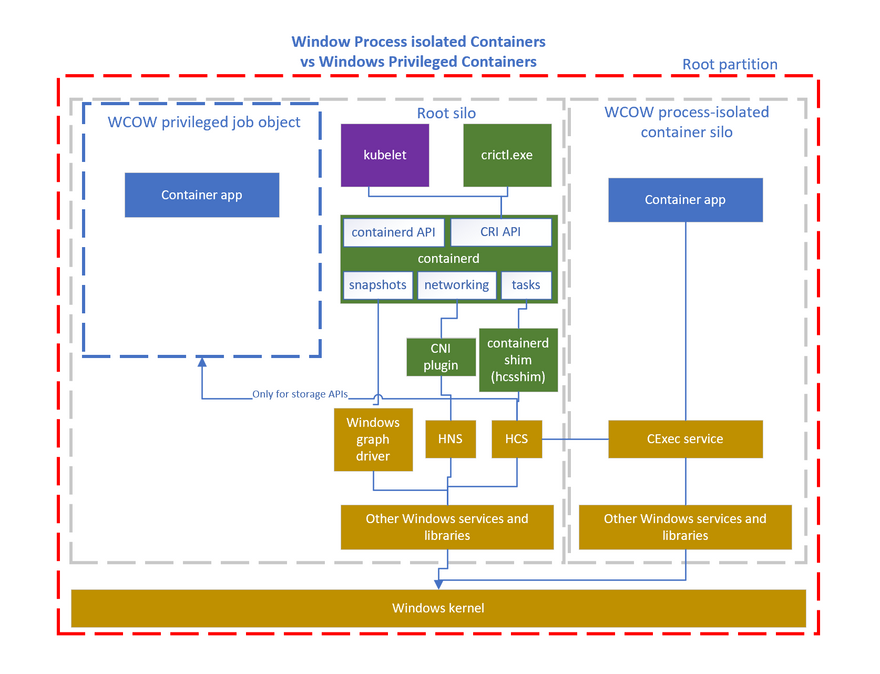

HostProcess and Linux privileged containers enable similar scenarios but differ greatly in their implementation (hence the naming difference). HostProcess containers have their own pod security policies. Those used to configure Linux privileged containers do not apply. Enabling privileged access to a Windows host is a fundamentally different process than with Linux so the configuration and capabilities of each differ significantly. Below is a diagram detailing the overall architecture of Windows HostProcess containers:

HostProcess Architecture

How do I use it?

HostProcess containers can be run from within aHostProcess Pod. With the feature enabled on Kubernetes version 1.22, a containerd container runtime of 1.5.4 or higher, and the latest version of hcsshim, deploying a pod spec with thecorrect HostProcess configurationwill enable you to run HostProcess containers. To get started with running Windows containers see the general guidance for Windows in Kubernetes

How can I learn more?

How do I get involved?

HostProcess containers are in active development. SIG Windows welcomes suggestions from the community. Get involved with SIG Windowsto contribute!
