Blog: How to Handle Data Duplication in Data-Heavy Kubernetes Environments

Authors: Augustinas Stirbis (CAST AI)

Why Duplicate Data?

It’s convenient to create a copy of your application with a copy of its state for each team. For example, you might want a separate database copy to test some significant schema changes or develop other disruptive operations like bulk insert/delete/update...

Duplicating data takes a lot of time. That’s because you need first to download all the data from a source block storage provider to compute and then send it back to a storage provider again. There’s a lot of network traffic and CPU/RAM used in this process. Hardware acceleration by offloading certain expensive operations to dedicated hardware is always a huge performance boost. It reduces the time required to complete an operation by orders of magnitude.

Volume Snapshots to the rescue

Kubernetes introduced VolumeSnapshots as alpha in 1.12, beta in 1.17, and the Generally Available version in 1.20. VolumeSnapshots use specialized APIs from storage providers to duplicate volume of data.

Since data is already in the same storage device (array of devices), duplicating data is usually a metadata operation for storage providers with local snapshots (majority of on-premise storage providers). All you need to do is point a new disk to an immutable snapshot and only save deltas (or let it do a full-disk copy). As an operation that is inside the storage back-end, it’s much quicker and usually doesn’t involve sending traffic over the network. Public Clouds storage providers under the hood work a bit differently. They save snapshots to Object Storage and then copy back from Object storage to Block storage when "duplicating" disk. Technically there is a lot of Compute and network resources spent on Cloud providers side, but from Kubernetes user perspective VolumeSnapshots work the same way whether is it local or remote snapshot storage provider and no Compute and Network resources are involved in this operation.

Sounds like we have our solution, right?

Actually, VolumeSnapshots are namespaced, and Kubernetes protects namespaced data from being shared between tenants (Namespaces). This Kubernetes limitation is a conscious design decision so that a Pod running in a different namespace can’t mount another application’sPersistentVolumeClaim (PVC).

One way around it would be to create multiple volumes with duplicate data in one namespace. However, you could easily reference the wrong copy.

So the idea is to separate teams/initiatives by namespaces to avoid that and generally limit access to the production namespace.

Solution? Creating a Golden Snapshot externally

Another way around this design limitation is to create Snapshot externally (not through Kubernetes). This is also called pre-provisioning a snapshot manually. Next, I will import it as a multi-tenant golden snapshot that can be used for many namespaces. Below illustration will be for AWS EBS (Elastic Block Storage) and GCE PD (Persistent Disk) services.

High-level plan for preparing the Golden Snapshot

  1. Identify Disk (EBS/Persistent Disk) that you want to clone with data in the cloud provider
  2. Make a Disk Snapshot (in cloud provider console)
  3. Get Disk Snapshot ID

High-level plan for cloning data for each team

  1. Create Namespace “sandbox01”
  2. Import Disk Snapshot (ID) as VolumeSnapshotContent to Kubernetes
  3. Create VolumeSnapshot in the Namespace "sandbox01" mapped to VolumeSnapshotContent
  4. Create the PersistentVolumeClaim from VolumeSnapshot
  5. Install Deployment or StatefulSet with PVC

Step 1: Identify Disk

First, you need to identify your golden source. In my case, it’s a PostgreSQL database on PersistentVolumeClaim “postgres-pv-claim” in the “production” namespace.

kubectl -n <namespace> get pvc <pvc-name> -o jsonpath='{.spec.volumeName}'

Enter fullscreen mode Exit fullscreen mode

The output will look similar to:

pvc-3096b3ba-38b6-4fd1-a42f-ec99176ed0d90

Enter fullscreen mode Exit fullscreen mode

Step 2: Prepare your golden source

You need to do this once or every time you want to refresh your golden data.

Make a Disk Snapshot

Go to AWS EC2 or GCP Compute Engine console and search for an EBS volume (on AWS) or Persistent Disk (on GCP), that has a label matching the last output. In this case I saw: pvc-3096b3ba-38b6-4fd1-a42f-ec99176ed0d9.

Click on Create snapshot and give it a name. You can do it in Console manually, in AWS CloudShell / Google Cloud Shell, or in the terminal. To create a snapshot in the terminal you must have the AWS CLI tool (aws) or Google's CLI (gcloud) installed and configured.

Here’s the command to create snapshot on GCP:

gcloud compute disks snapshot <cloud-disk-id> --project=<gcp-project-id> --snapshot-names=<set-new-snapshot-name> --zone=<availability-zone> --storage-location=<region>

Enter fullscreen mode Exit fullscreen mode

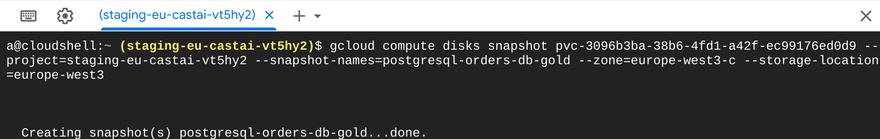

Screenshot of a terminal showing volume snapshot creation on GCP
GCP snapshot creation

GCP identifies the disk by its PVC name, so it’s direct mapping. In AWS, you need to find volume by the CSIVolumeName AWS tag with PVC name value first that will be used for snapshot creation.

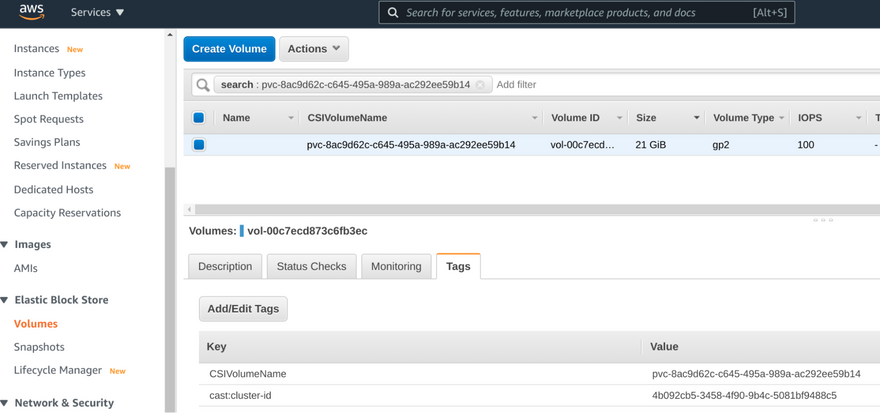

Screenshot of AWS web console, showing EBS volume identification
Identify disk ID on AWS

Mark done Volume (volume-id) vol-00c7ecd873c6fb3ec and ether create EBS snapshot in AWS Console, or use aws cli.

aws ec2 create-snapshot --volume-id '<volume-id>' --description '<set-new-snapshot-name>' --tag-specifications 'ResourceType=snapshot'

Enter fullscreen mode Exit fullscreen mode

Step 3: Get your Disk Snapshot ID

In AWS, the command above will output something similar to:

"SnapshotId": "snap-09ed24a70bc19bbe4"

Enter fullscreen mode Exit fullscreen mode

If you’re using the GCP cloud, you can get the snapshot ID from the gcloud command by querying for the snapshot’s given name:

gcloud compute snapshots --project=<gcp-project-id> describe <new-snapshot-name> | grep id:

Enter fullscreen mode Exit fullscreen mode

You should get similar output to:

id: 6645363163809389170

Enter fullscreen mode Exit fullscreen mode

Step 4: Create a development environment for each team

Now I have my Golden Snapshot, which is immutable data. Each team will get a copy of this data, and team members can modify it as they see fit, given that a new EBS/persistent disk will be created for each team.

Below I will define a manifest for each namespace. To save time, you can replace the namespace name (such as changing “sandbox01” → “sandbox42”) using tools such as sed or yq, with Kubernetes-aware templating tools likeKustomize, or using variable substitution in a CI/CD pipeline.

Here's an example manifest:

---
apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshotContent
metadata:
 name: postgresql-orders-db-sandbox01
 namespace: sandbox01
spec:
 deletionPolicy: Retain
 driver: pd.csi.storage.gke.io
 source:
 snapshotHandle: 'gcp/projects/staging-eu-castai-vt5hy2/global/snapshots/6645363163809389170'
 volumeSnapshotRef:
 kind: VolumeSnapshot
 name: postgresql-orders-db-snap
 namespace: sandbox01
---
apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
 name: postgresql-orders-db-snap
 namespace: sandbox01
spec:
 source:
 volumeSnapshotContentName: postgresql-orders-db-sandbox01

Enter fullscreen mode Exit fullscreen mode

In Kubernetes, VolumeSnapshotContent (VSC) objects are not namespaced. However, I need a separate VSC for each different namespace to use, so themetadata.name of each VSC must also be different. To make that straightfoward, I used the target namespace as part of the name.

Now it’s time to replace the driver field with the CSI (Container Storage Interface) driver installed in your K8s cluster. Major cloud providers have CSI driver for block storage that support VolumeSnapshots but quite often CSI drivers are not installed by default, consult with your Kubernetes provider.

That manifest above defines a VSC that works on GCP. On AWS, driver and SnashotHandle values might look like:

 driver: ebs.csi.aws.com
 source:
 snapshotHandle: "snap-07ff83d328c981c98"

Enter fullscreen mode Exit fullscreen mode

At this point, I need to use the Retain policy, so that the CSI driver doesn’t try to delete my manually created EBS disk snapshot.

For GCP, you will have to build this string by hand - add a full project ID and snapshot ID. For AWS, it’s just a plain snapshot ID.

VSC also requires specifying which VolumeSnapshot (VS) will use it, so VSC and VS are referencing each other.

Now I can create PersistentVolumeClaim from VS above. It’s important to set this first:

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
 name: postgres-pv-claim
 namespace: sandbox01
spec:
 dataSource:
 kind: VolumeSnapshot
 name: postgresql-orders-db-snap
 apiGroup: snapshot.storage.k8s.io
 accessModes:
 - ReadWriteOnce
 resources:
 requests:
 storage: 21Gi

Enter fullscreen mode Exit fullscreen mode

If default StorageClass has WaitForFirstConsumer policy, then the actual Cloud Disk will be created from the Golden Snapshot only when some Pod bounds that PVC.

Now I assign that PVC to my Pod (in my case, it’s Postgresql) as I would with any other PVC.

kubectl -n <namespace> get volumesnapshotContent,volumesnapshot,pvc,pod

Enter fullscreen mode Exit fullscreen mode

Both VS and VSC should be READYTOUSE true, PVC bound, and the Pod (from Deployment or StatefulSet) running.

To keep on using data from my Golden Snapshot, I just need to repeat this for the next namespace and voilĂ ! No need to waste time and compute resources on the duplication process.
